Automatic sewing lines
Bags

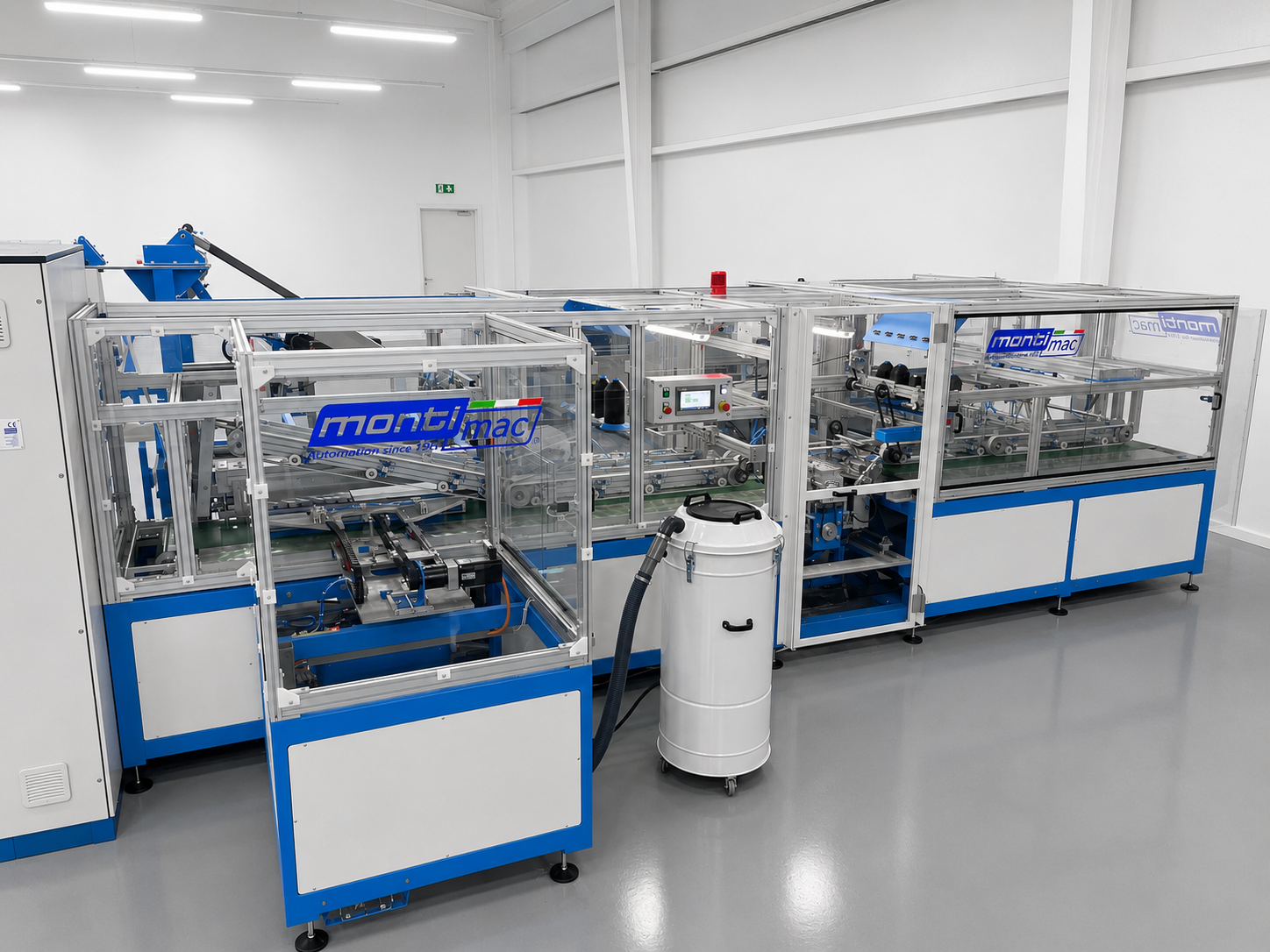

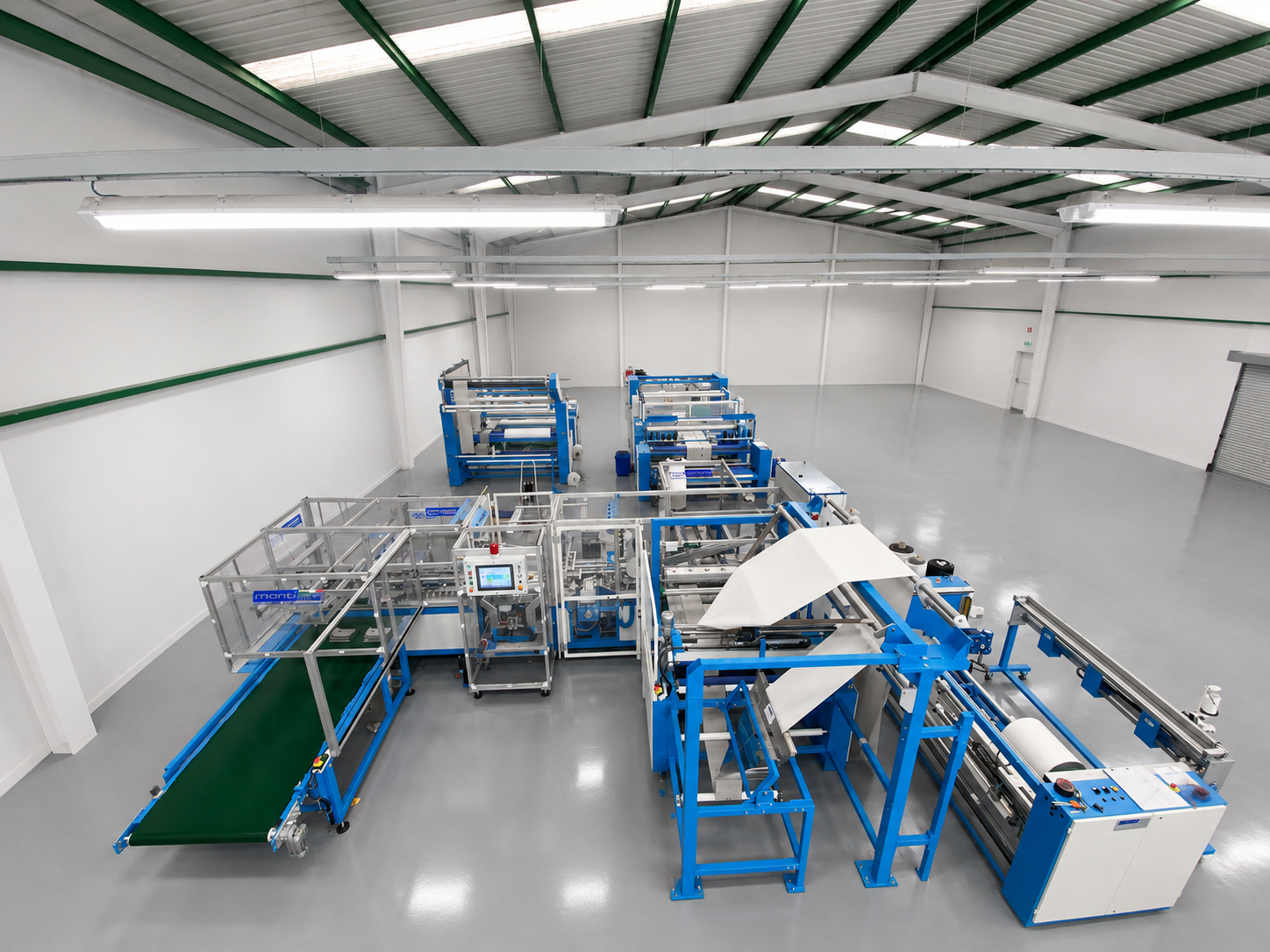

Mod. SAC AUTO-05

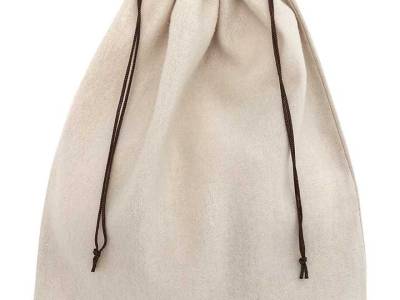

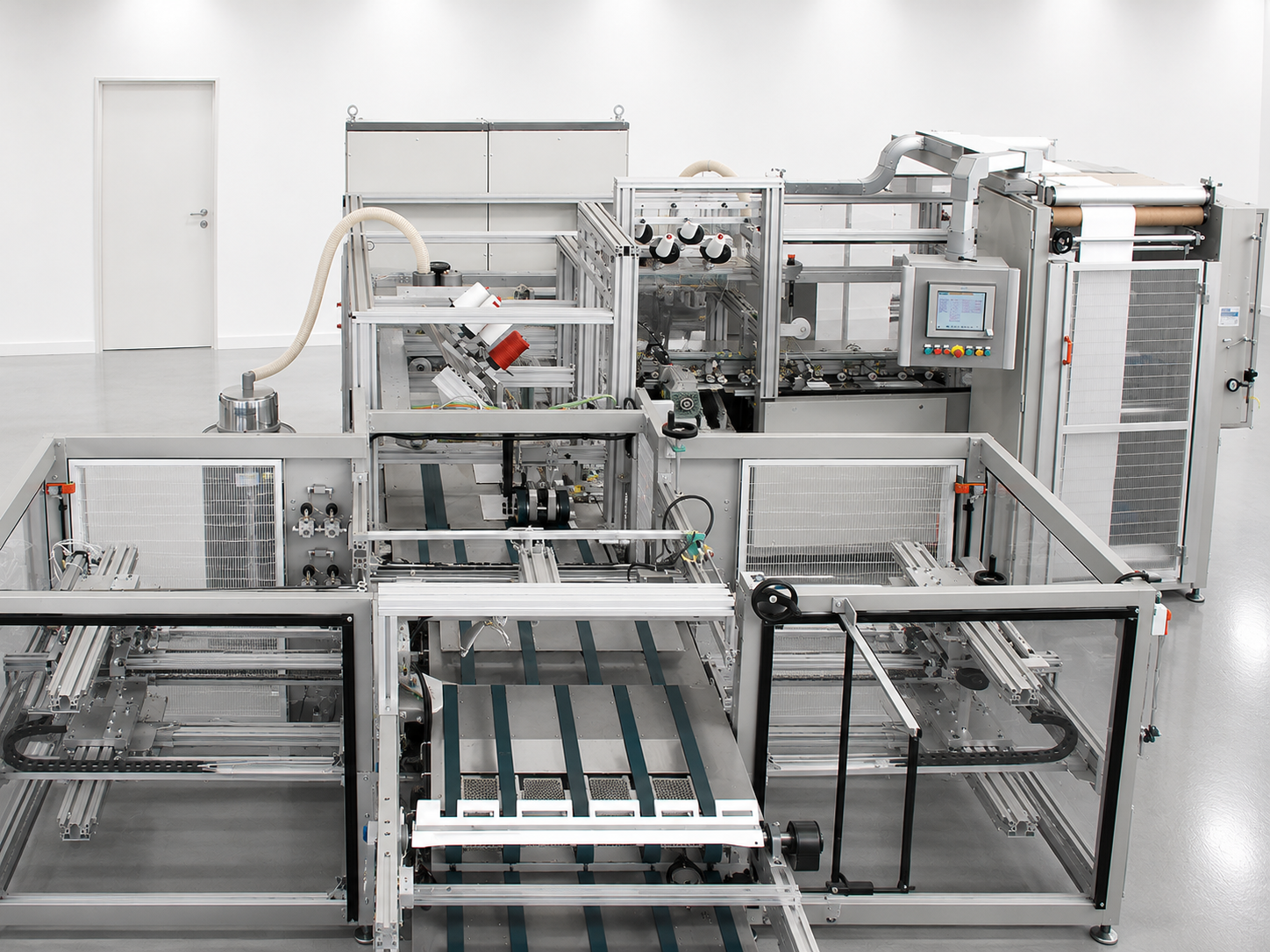

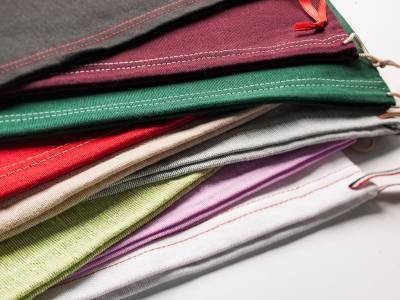

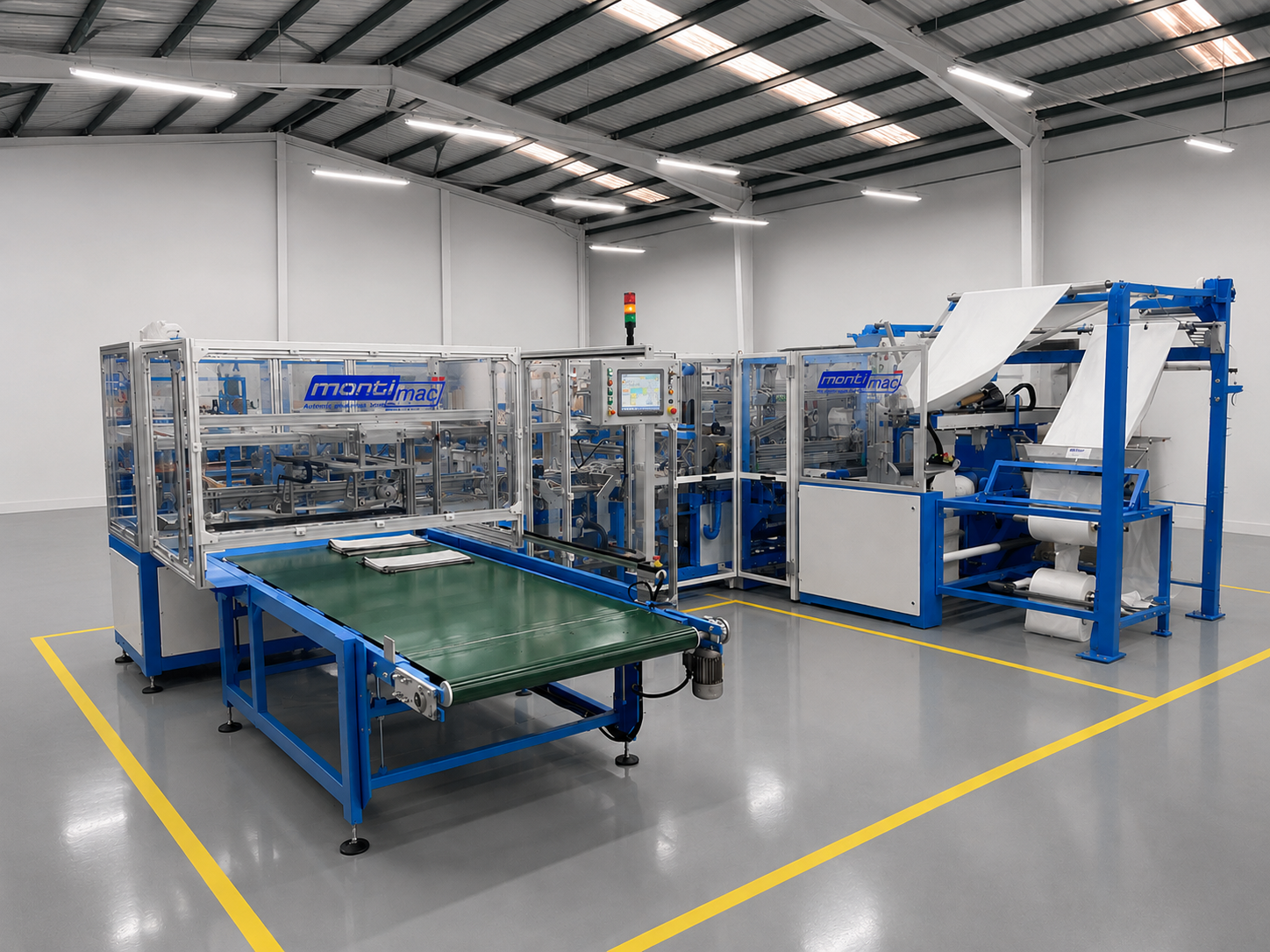

Automatic plant for the production of bags, shopping bags made of fabric, TNT, net, jute, etc.

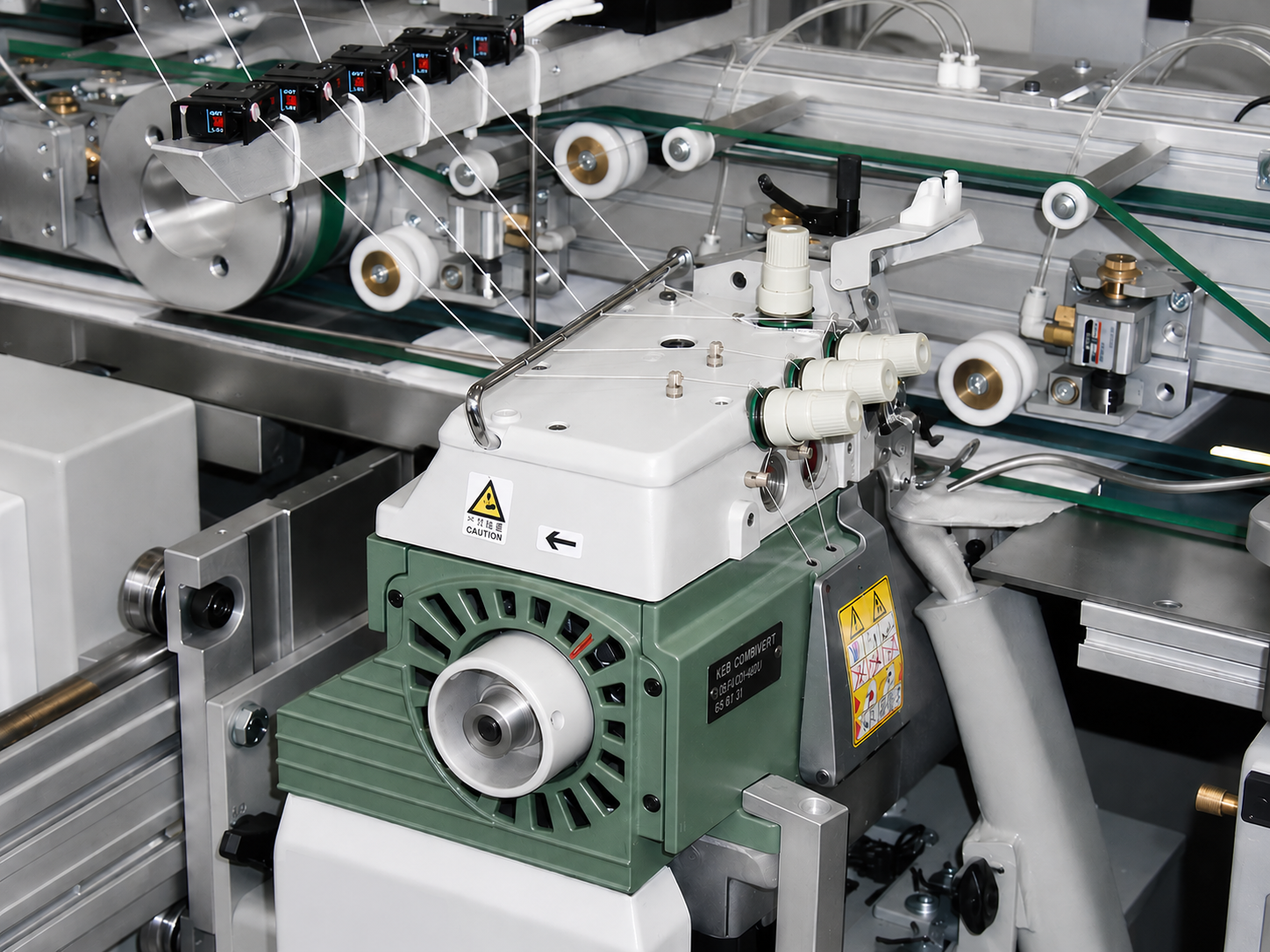

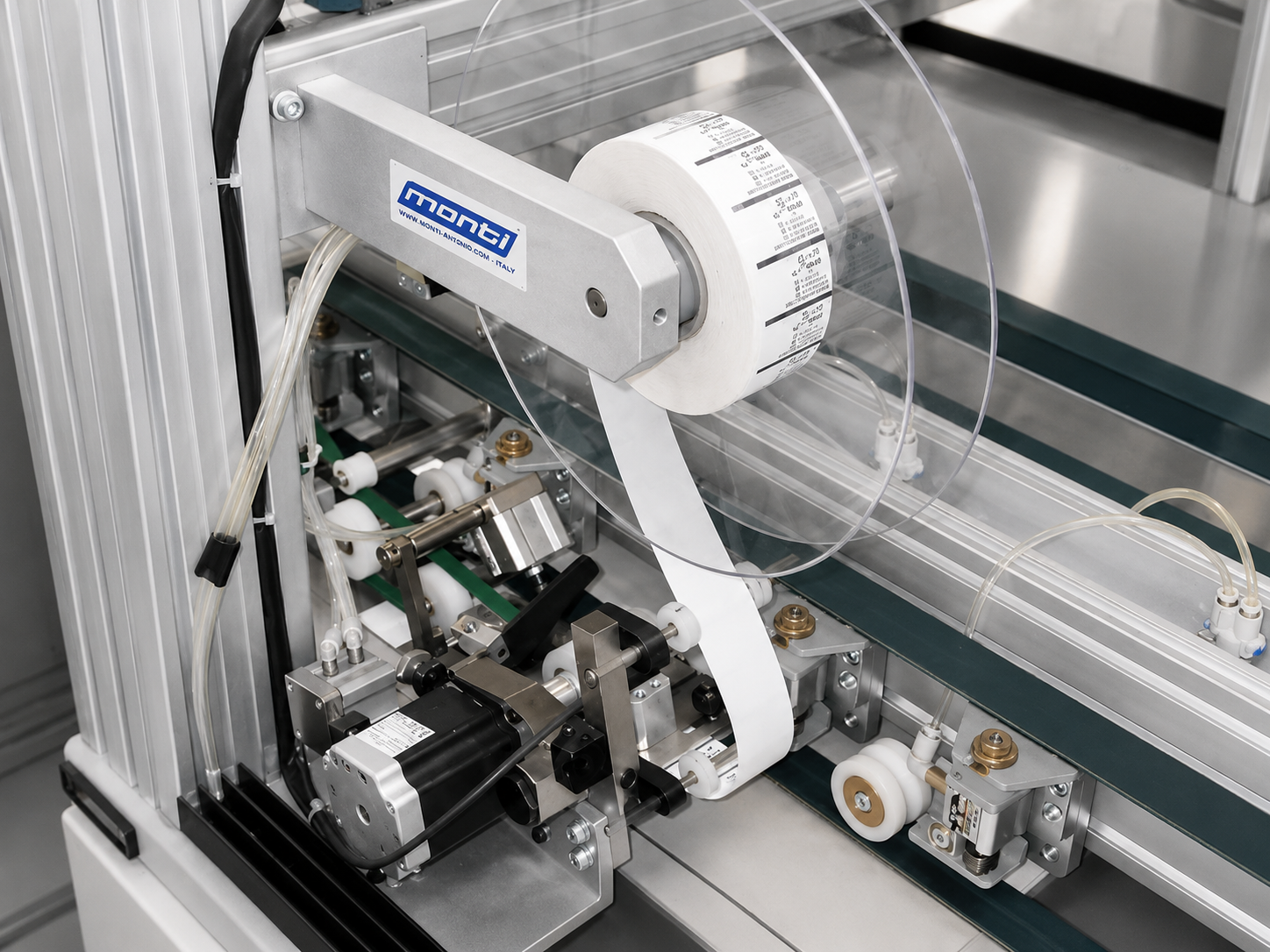

The work cycle involves the production of the finished product with insertion of bag closure lanyard label, stitching the sides of the bag with 3/4 or 5-thread overlock with automatic stitch thickening device at the beginning of stitching and stacking the finished product on decremental discharge belt. Optional system of reversal of the bag. Reading system print for centering "logo" on front of bag or bag cutting system to size with measuring encoder.
Management of the entire line with PLC / PC and user-customizable recipe system that can be reciprocated at every occasion. Special software for making bags with slippery materials such as raso.

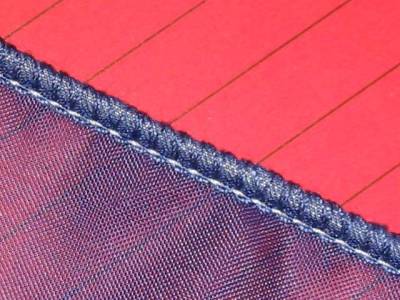

Curtains

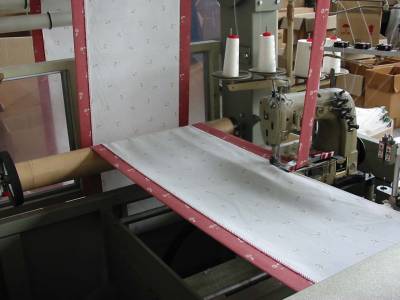

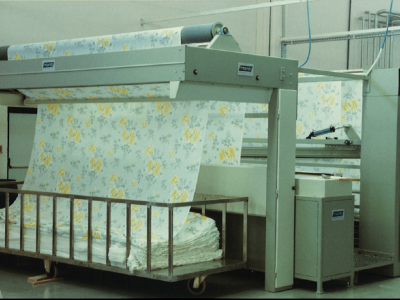

Mod. R210-3

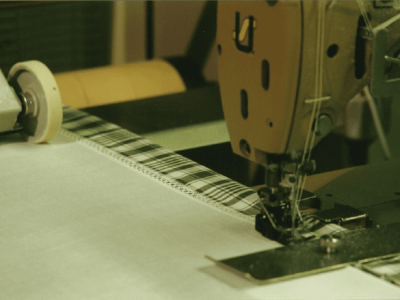

Automatic machine ideal for bilateral longitudinal hemming with stitching of sheets, tablecloths, curtains, napkins, etc.
Very flexible line in its implementation that can receive sewing machines knotted stitch and chain stitch according to the required specifications and reach working heights up to 5000mm. The type of hem, as well as its size are made to sample, according to individual processing requirements.
Working voltage control system, operator interface display, management PLC and alarm diagnostics enable automatic working with the highest quality of the product made.

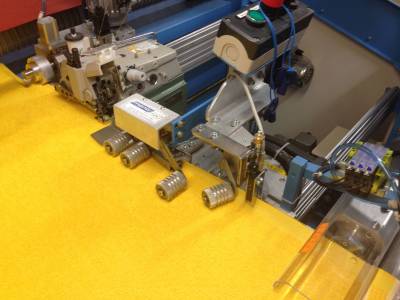

Towels

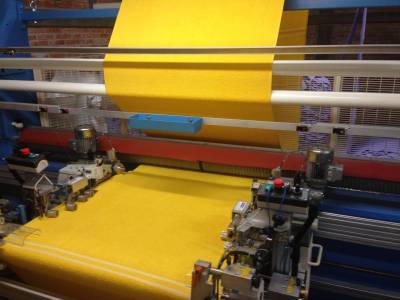

Mod. 2074 TEC-09

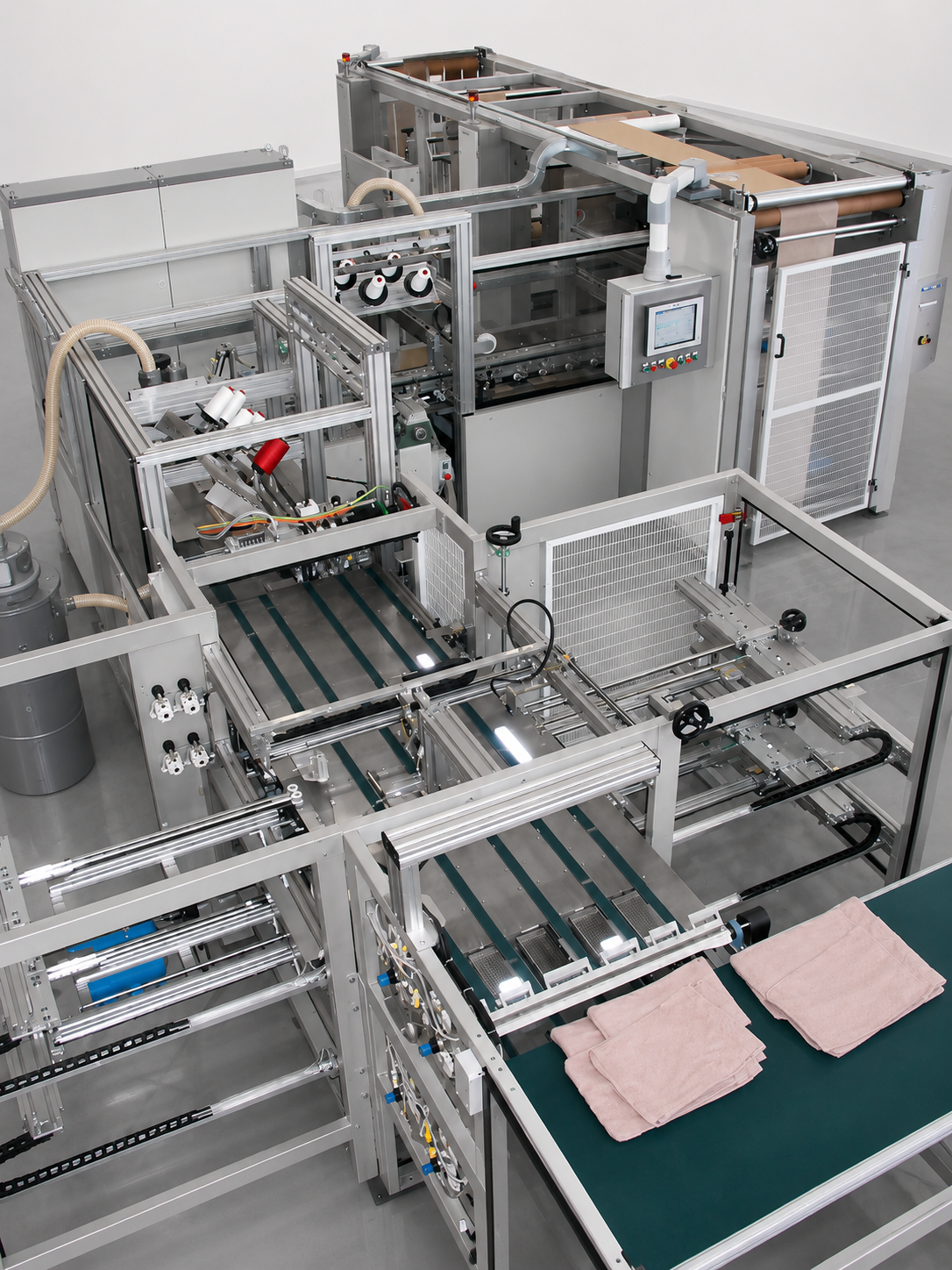

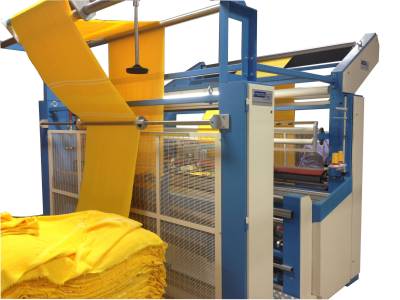

Linea automatica per il taglio e la cucitura trasversale di tessuti di spugna. The work cycle includes automatic straightening of the product before cutting, transverse cutting with motorized blade, transverse hemming with transverse stitching.
Chain stitch sewing 1 needle, 2 threads with automatic stitch thickening system at each corner of the product being worked. On request installation of lock stitch (knotted stitch) machine 1 needle, 2 threads with automatic stitch franking system at each corner of the product with no stop technology that does not stop the product to perform this process.
Possibility of applying flat, folded, bar code and "German type" label in the desired position and up to a maximum of 3 labels per side. Possibility of installation of additional "lock stitch" sewing machines in combined cycle with chain sewing machines for execution of corner franking in automatic always with no stop system that does not stop the product in work.
Ability to process up to 4 product strips simultaneously (depending on the size of each) to optimize production and productivity of the entire line.

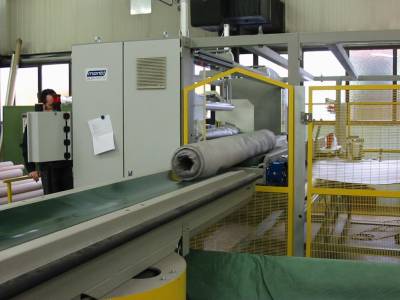

Geotextile
Mod. R10-GEO

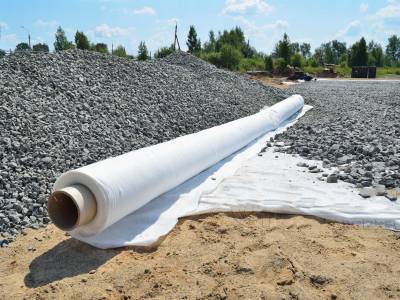

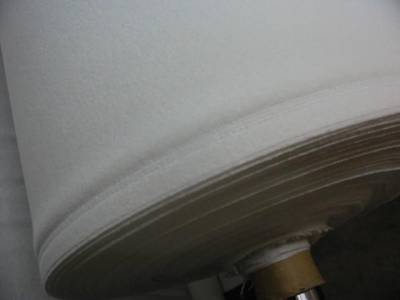

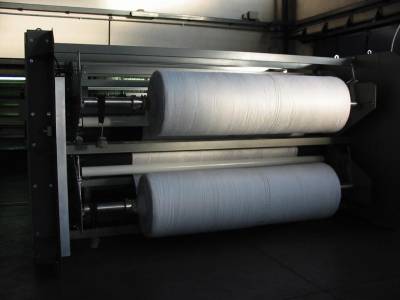

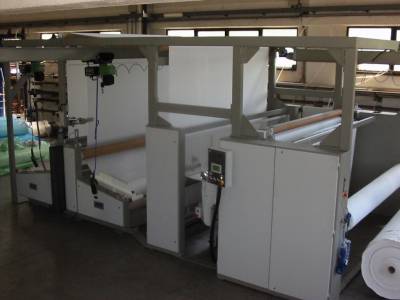

Automatic plant for laminating and stitching 2 or more layers of geotextile articles with automatic packing system on roll of processed product.
The purpose of the system is to couple with a seam 2 geotextile products in order to create a single product having height / width resulting from the sum of the two products in work and thus simplify the paving operations of large works that require coverage with geotextiles of very large spaces. The stitching avoids, during installation, to perform the overlap of 70/80cm of product with a huge economic advantage resulting from the reduction of the product used but more importantly from the reduction of transportation and handling costs for putting it in place.
The stitching performed depends on the type of product being worked on and can be 1-needle or 2-needle of the required strength. The sewing product may be polyester or polypropylene with a maximum weight of 850 grams per square meter and a thickness of 4mm each.
The line is available in two different versions:
- BASE: with maximum product height up to 3000mm
- WIDE: with maximum product height 5400mm

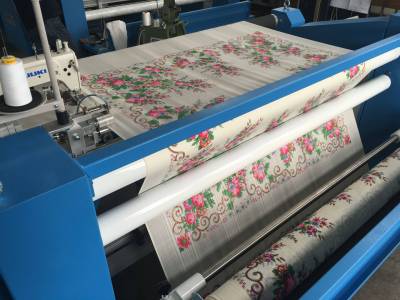

Scarf
Mod. R10-12

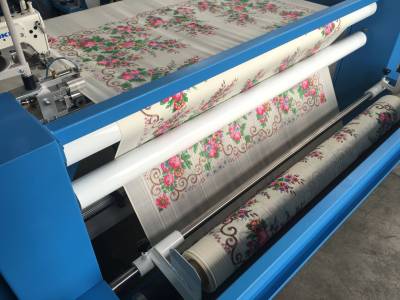

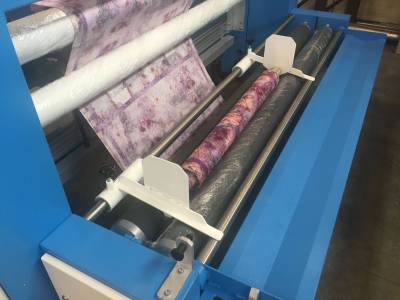

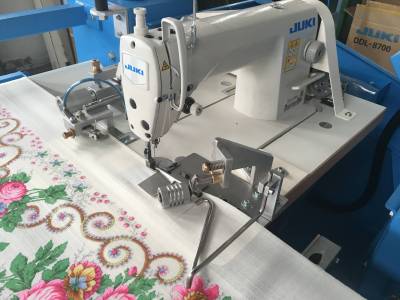

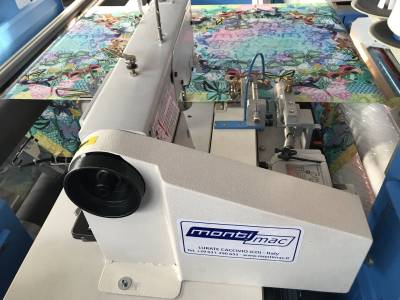

Automatic line for longitudinal hemming of scarves, handkerchiefs, napkins, etc.
The machine performs the hemming operation on one longitudinal side of the product in knotted stitch work, special set-up for silk, cotton and polyester fabrics. Hem size 1.2/1.5mm depending on the type of product in work and customer's requirements.
The processed product is rolled on cardboard tube or folded into collection box.
Carpet edging
Mod. R210-2 SUR
Automatic machine for bilateral longitudinal overcasting of carpets, runners and runners.
Sewing machines installed overlock 1 needle, 2 threads. On request 1 ao 3 threads.
Electronic work product tension management system, operator interface display and stitching area access walkway enable the operator to easily operate the machine and obtain the desired product quality.
Blankets

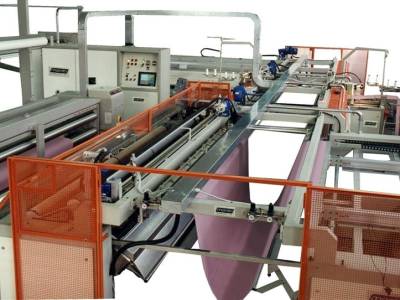

Mod. 2074-BLA

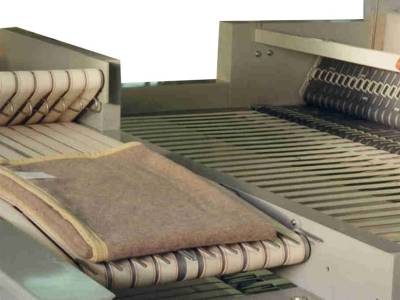

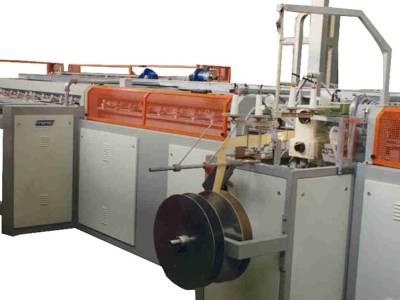

Automatic plant for cutting + cross-stitching of blankets / bedspreads ecc. Cross-cutting with motorized blade, with cut-to-length system or with straightening system for reference cutting.

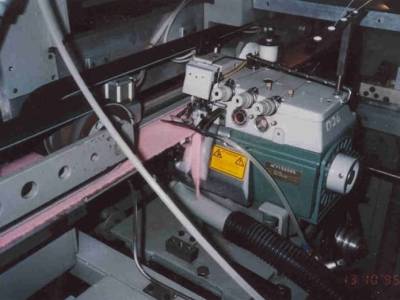

Cross stitching made with chain stitch 1 or 2 needle sewing machines, with sample ribbon application device. Alternatively, possibility of horse stitch or overlock sewing execution. Optional labeling unit.
On leaving the line, the product is accumulated on special pull-out trolley to be started for quality control and packaging operations. Optional in-line folding system.
