Automatic sewing lines
TF-200 Scarves
Plant for longitudinal cutting at cold (TF 200 COLD) with multiple heads, especially suitable for natural fibers such as cotton, wool, etc.
Minimal footprint cutting units that guarantee making strips up to 120mm wide each.
Alternatively, cutting units can be installed at hot (TF200 HOT) particularly suitable for all synthetic fabrics. Timely temperature control ensures perfect fiber bonding by preventing burning.
Product winding system at the outlet, available for both versions is provided on cardboard tube.
Optionally, a staggered-axis product winding unit is possible.
Maximum working speed up to 40 meters per minute.

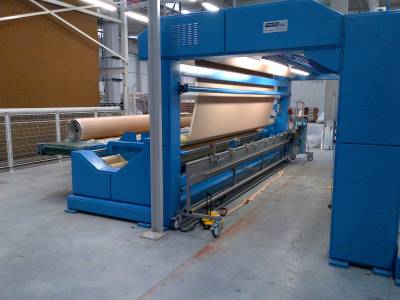

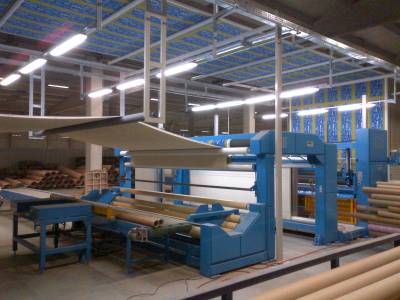

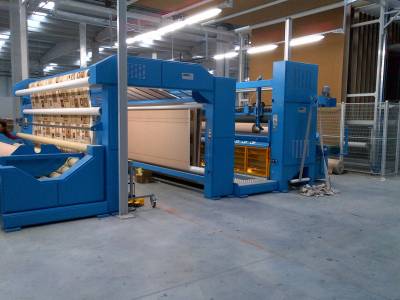

TF-5000 Carpet
Automatic plant for longitudinal cutting of tufting mats with independent cutting units and system automatic cutting reference reading.

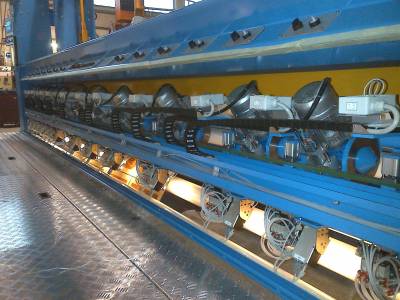

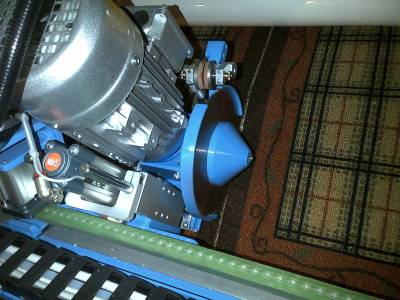

Each cutting unit is equipped with a system with Independent automatic reference and displacement reading chamber to precisely and timely follow any changes in the position of the product to be cut. Ideal for digitally printed mats. Product winding unit at line outlet with automatic unloading device and cross cutting.
Can be put in line with coating unit or single installation.
TF-3600 Terry Towel
Implantation automatic for longitudinal cutting of sponge. Cutting system with rotating blades and automatic guiding system of each cutting unit following the position of the reference sponge curl.
Thanks to the installation of electronic "RICCIO" sponge reading systems, our system is able to read and guide perfectly all types of sponges from the lightest and thinnest (300/350 gsm) to the thickest (800/1000gsm).
Maximum working speed up to 40 meters per minute.
